Henderson Precision Gen 4 ULTIMAX Case Trimmer (PRE-ORDER)
The Henderson Precision V4 Ultimax trimmer is now available for pre-order.
Please read carefully before ordering!
- This is a pre-order for a Henderson Precision Gen 4 Ultimax trimmer
- We anticipate stock will ship from the US via palletised air freight in the week of Monday June 29’th.
- Based on previous experience transport time is generally aound 1.5 weeks door to door.
- We will ship all back ordered items within 48 hours of receipt at our warehouse.
- Upon shipping you will receive notification from Australia Post with your order tracking number.
- PLEASE do not email us to “just check in” or “see how it’s going” – if there’s any need to reach out we’ll absolutely do it!
Gen 4 Features
- Supports 17cal through 375 Cheytac and (45-70)

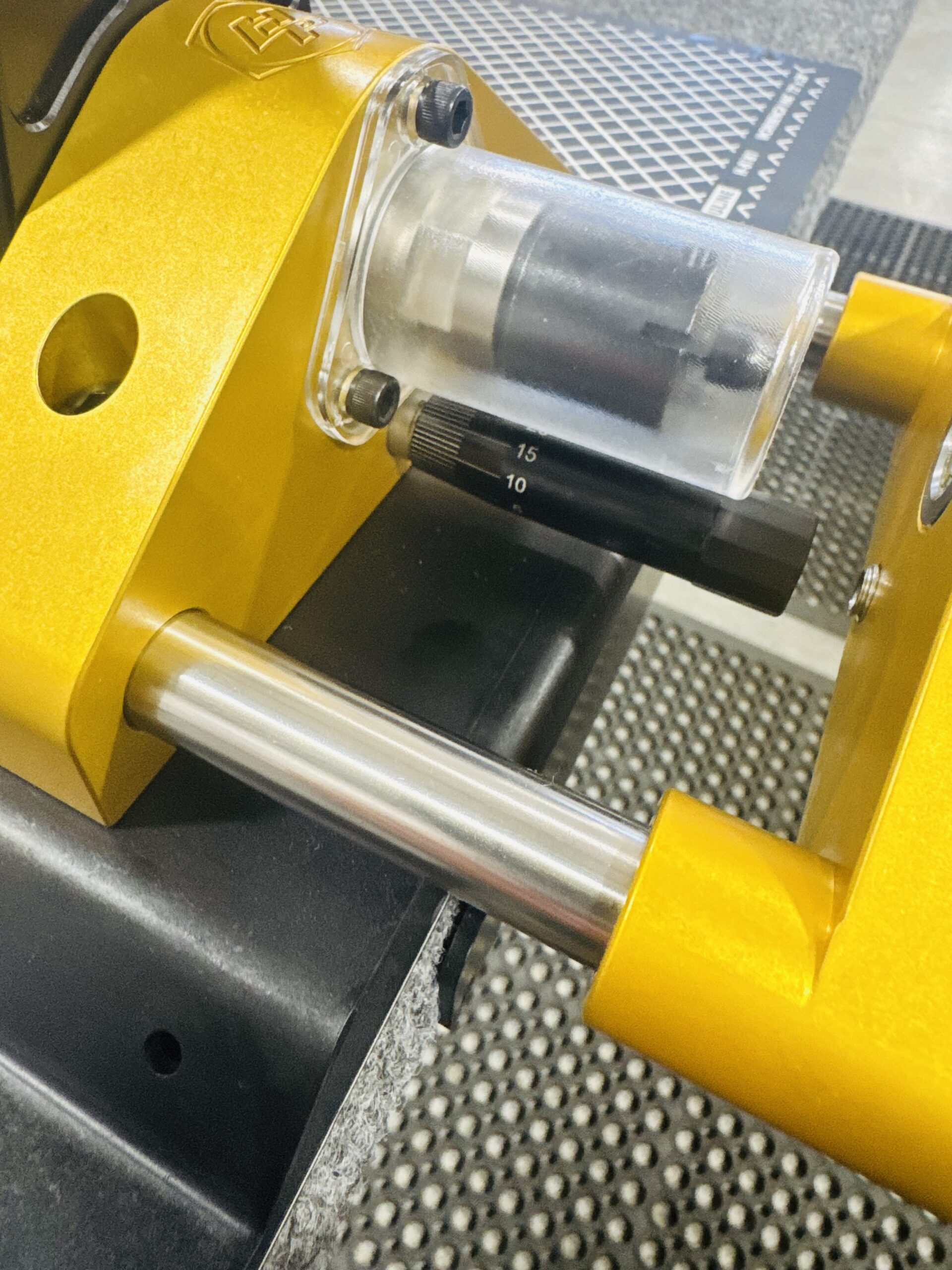

- Micrometer stop
- 416 and 50BMG conversion coming
- Pistol and straight wall case conversion coming
- New larger collets #01 – #05
- Reverse rod design
- New handle
- New bin and shaving containment
- New base plate
- Compatible With ELR and standard cutting heads
What’s Included
- #1 Collet
- Caliber specific cutting head of your choice (see dropdown)
- Extra Drive belt
- Extra Cutter draw screw
- Base Plate for mounting
- 5/32 Allen wrench
- 7/8 wrench for cutting head removal
- Bin and shaving catch assembly
Overview
The GEN 4 ULTIMAX Case Trimmer utilizes The Taper-Lock cutter head to create clean, consistent and completely trimmed cases in one operation. The cutter head has adjustable carbide blades that will last a lifetime and leave burr-free cuts on the mouth of the case. GEN 4 ULTIMAX Case Trimmer is machined from 6061-T6 aluminum and a combination of 303 and 416 stainless steel. It has been engineered and manufactured 100% in America for a lifetime of service to the end user.
Design

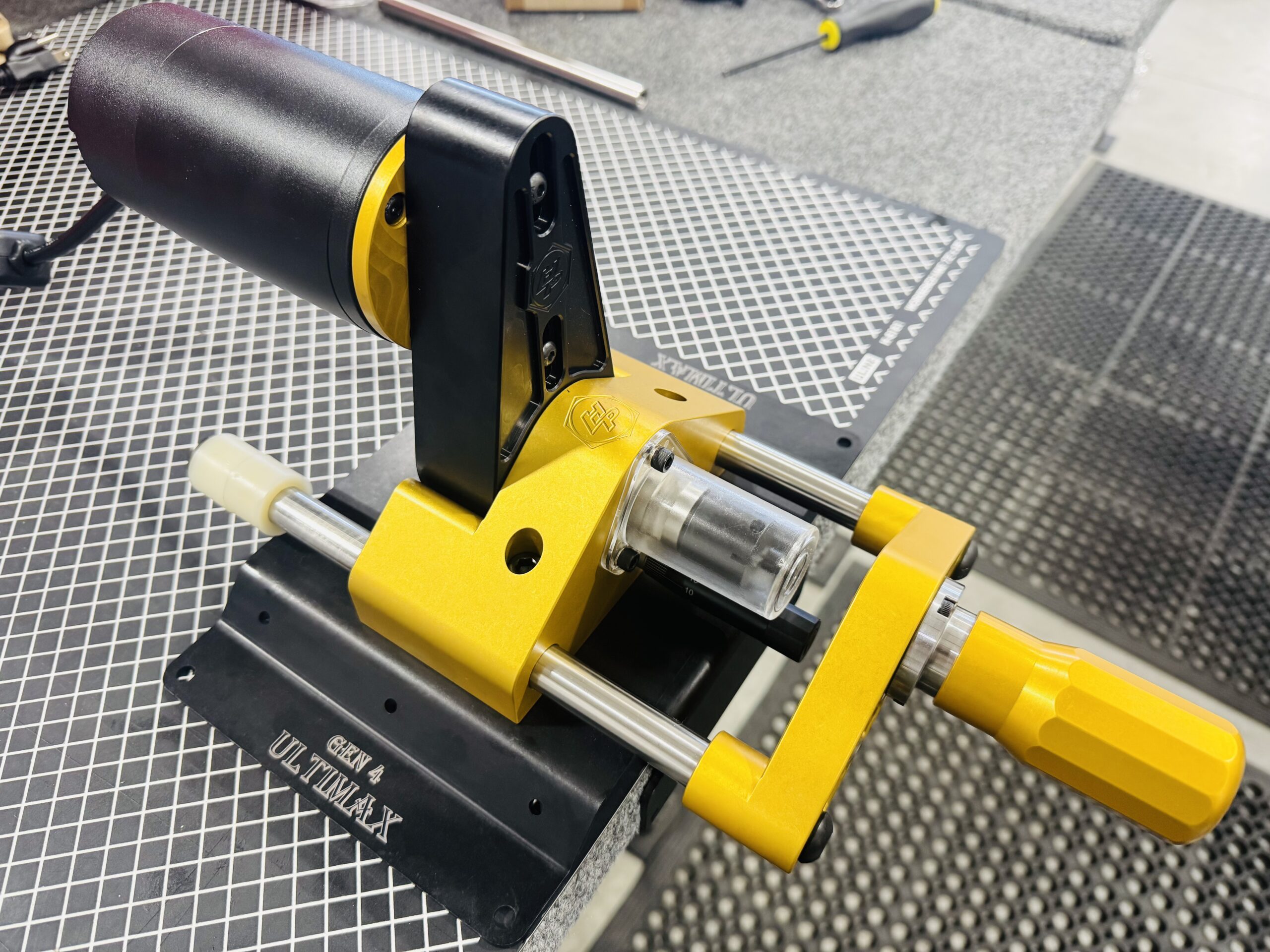

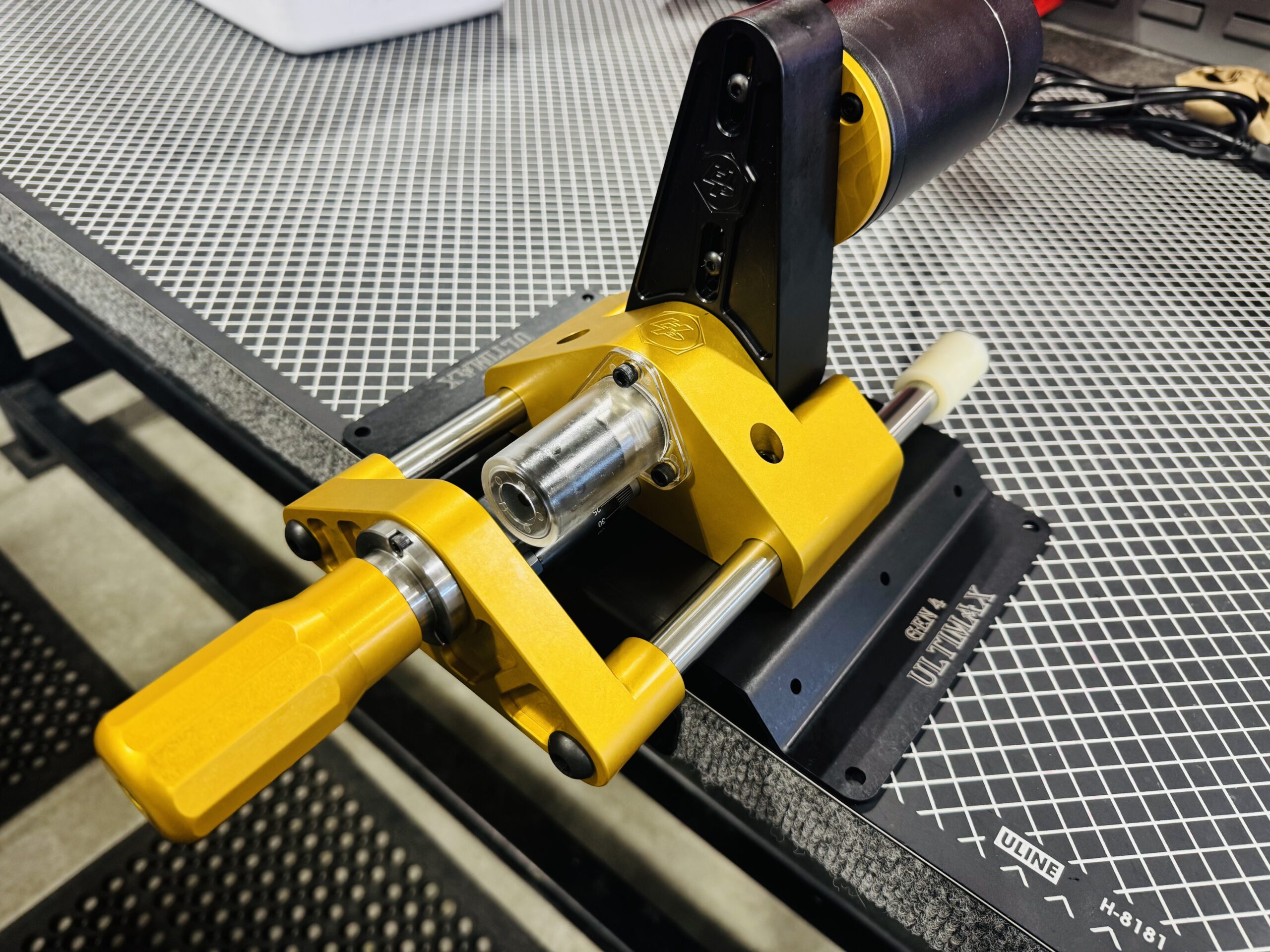

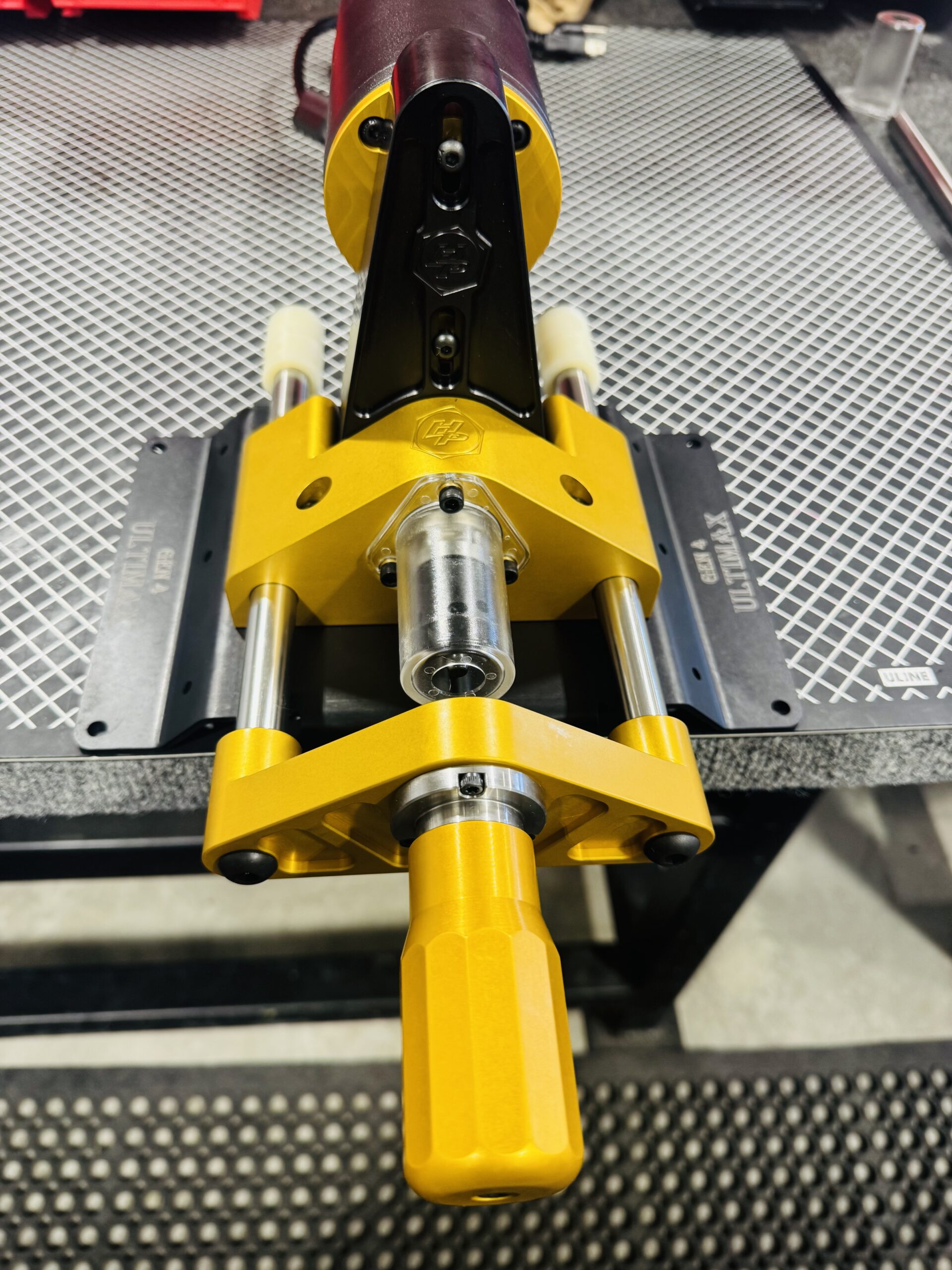

The trim operation for rifle cases is especially time consuming unless you are using a GEN 4 ULTIMAX Case Trimmer. It is designed from the ground up to make trimming cases easy, fast and accurate. The cartridge case is held by a Henderson manufactured Brown and Sharpe type collet. These types of collets are used in the machine tool world because of their accuracy and repeatability. There are 5 collets for the various cartridges, one would reload from .17 to Cheytac. The cartridge case is placed into the collet base first and held in place while the handle is tightened to secure the case for the trimming operation. It only takes about ten degrees of rotation for the handle to secure the case. This design holds the case in the same position regardless of the rim diameter for consistent trim length. The collet assembly is mated to a carriage machined from solid 6061-T6 bar stock and precision fit to ground and polished stainless rods. The spindle is machined from stainless steel and rides in a set of sealed ball bearings which are press-fit into the bearing housing which is also machined from solid 6061-T6 bar stock. All aluminum parts are type II anodized coated. All the fasteners are black oxide-coated and sourced locally.
Setup
- Remove power source or unplug trimmer before adjustment is made
- Wear Eye and Ear protection when operating trimmer
- Operate only with clear cover attached to trimmer
GEN 4 ULTIMAX Case Trimmer will come with one collet for the desired cartridge and will need to be set up before use. Before any adjustments are made to the GEN 4 ULTIMAX Case Trimmer, make sure the power source has been turned off. The protective cover may be removed for the adjustment procedure but must be used while in operation to prevent injury to the user. The Taper-Lock cutting head is available non-adjusted only. Please refer to our video page and the Ultimate Reloader video for step-by-step instruction. To set the length, insert a cartridge case into the respective collet and tighten handle. Gently push the handle forward toward the cutter head until the mouth of the case passes over the pilot and touches the blades. With the case mouth touching the cutting blades, back out the micrometer stop until it touches the carriage stop. This is a coarse adjustment and should only take a minute or two. Install the protective cover and power source and attempt to trim your case by pushing it toward the cutter head. If it does not trim turn off the power source screw the micrometer in a small amount and attempt another trim cycle. Repeat as necessary until the cartridge case is trimmed and then measure and adjust as needed to attain the desired length. Record the micrometer setting for future use with each caliber. For cases longer than 300Win it may be necessary to change the stainless set screw in the center of the carriage to a longer option which is provided with the unit. Adding the longer set screw will allow proper throw for the micrometer stop.
Cutter Head
The cutter is connected to a 10/24 screw through the shaft. To change out the cutter (first remove power source) then loosen the 10/24 screw and remove the head. Replace the cutter with desired caliber making sure that both the taper on the cutter and shaft is clean. Insert the tapered ends together tightening back down the 10/24 screw snuggly.
- Do not overtighten the cutter head to the shaft
Operation
GEN 4 ULTIMAX Powered Case Trimmer is designed with a custom DC single speed motor that powers the trimmer at around 1800 rpms. It is preferable to screw or clamp it to your work bench. When in proper position for use the GEN 4 ULTIMAX Case Trimmer will be positioned on a bench with the cutter head facing toward the operator and the cutter head will rotate in a counterclockwise direction. Insert a clean and sized cartridge case into the collet and rotate the handle clockwise, hand tight to secure the case. Gently push the handle toward the cutter until the cutter head engages the case mouth. At this point you will feel the cutting action. When you no longer see or feel the cutting action, retract the carriage and loosen the handle to remove the case. It is recommended to measure the cases randomly to make sure all adjustments are secure.
Enjoy your new GEN 4 ULTIMAX Case Trimmer, if you have any questions make sure to contact us.
Collet Guide
Collet #01 (.379, .473 & .532 Dia) – 222 Rem. Mag, 223 Rem, 225 Win, 22-250, 220 Swift, 243 Win, 6mm Dasher, 6×47 Lapua, 6XC, 244 Rem, 6mm B.R. Rem., 257, 25-06, 264 Win. Mag, 260 Rem, 6.5×47 Lapua, 6.5 Creed, 6mm Creed, 6mm SLR, 6.5×57 Mauser, 6.5mm Win, 6.5 Jap Mauser, 6.5×55 Swede, 6.5×55 SKAN, 270 Win, 270 Savage, 270 Gibbs, 270 Wby, 270 Ackley, 7×57 Mauser, 7mm Wby, 7mm-08, 280 Rem, 284 Win, 7mm Rem. Mag, 7mm B.R. Rem, 30-06, 308 Win, 300 win Mag, 300 Sav, 303 British, 35 Whelen, 350 Legend
Collet #02 (.350, .418 & .506 Dia) – 30-30, 7.5×55 Swiss
Collet #03 (.356, .440 & .545 Dia) – 6mm PPC, 6mm Krag, 6.5 Grendel, 6 ARC, 22ARC, 6.8SPC, .224 Valkyrie, 300 Rem. Ultra Mag, 300 WSM, 300 SAUM, 6.5 PRC, 300 PRC, 7mm PRC. 26 Nosler, 28 Nosler
Collet #04 (.605 Dia) – 300 Norma Mag, 338 Norma, 338 Lapua, 33XC, 37 XC, 45-70
Collet #05 (.640 Dia) – Cheytac, Hellfire
