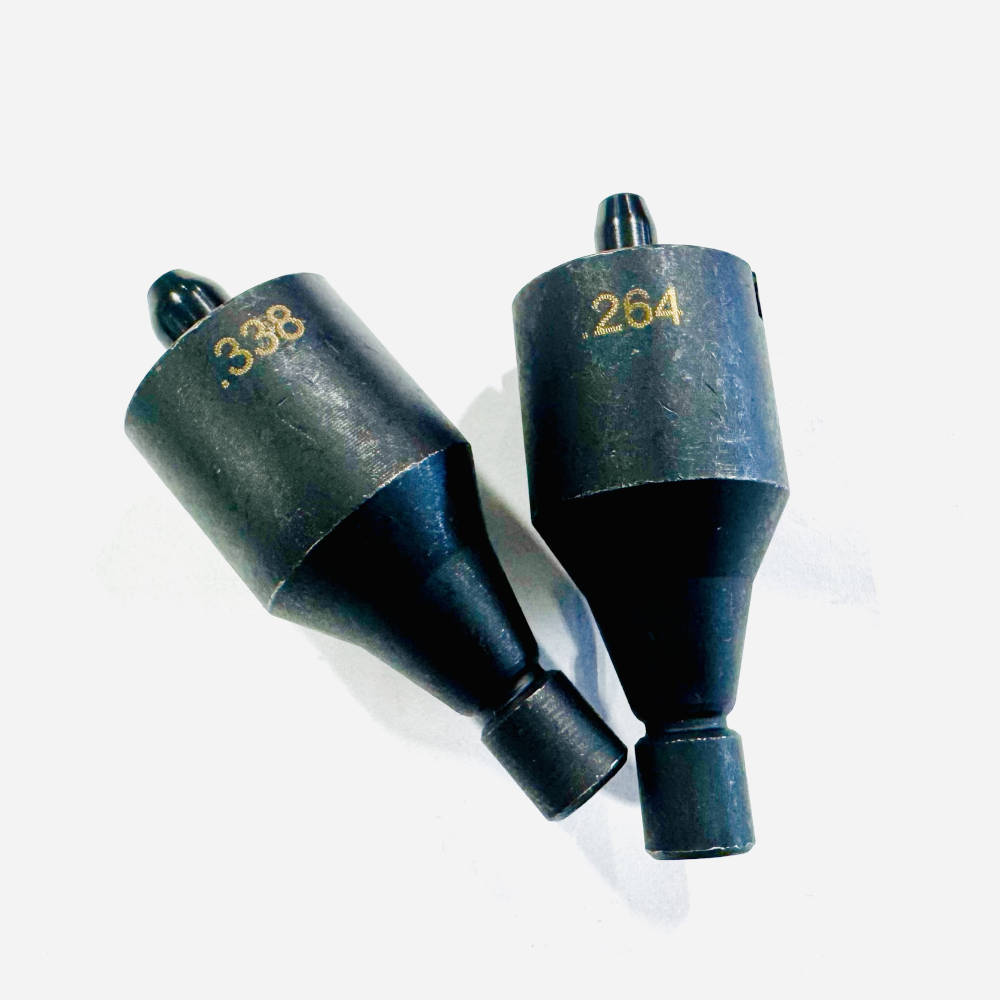

Gen 4 ULTIMAX Cutting Head

Taper-Lock cutting heads will only fit the Gen 4 trimmer (Not for the Gen 2 or 3 Trimmer)

Cutter bodies are machined from 416 stainless steel. The ID chamfer is 14° and the OD chamfer is 30°, the blades are made from carbide. The Taper-Lock cutters can be order either  factory adjusted or they can be adjusted by the end user. Henderson Precision has videos on their website that will walk you through the process. The trimmer utilizes a draw screw taper on taper design for precision alignment of the cutting head and shaft.  All pilots are Caliber-Specific.

• Taper-Lock Cutter Replacement
• Disconnect Power Source Before making Any Adjustment
• Insert 5/32 Allen wrench into socket head screw in the middle of the pulley
• Insert 11/16 wrench on the front of drive shaft
• Holding the Allen wrench fixed, loosen the cutter with the 11/16 wrench
• Once loose, remove socket head screw with fingers
• Replace cutter making sure both tapers are clean
• Hold cutter firm against the female taper with fingers, reinsert the 10/24 socket head screw until both parts are snug
• Inserted the 10/24 Allen wrench holding it fixed, tighten cutter to the shaft with 11/16 wrench until snug.
• Do not over tighten assembly
